Electronic Power Control (EPC), Servicing

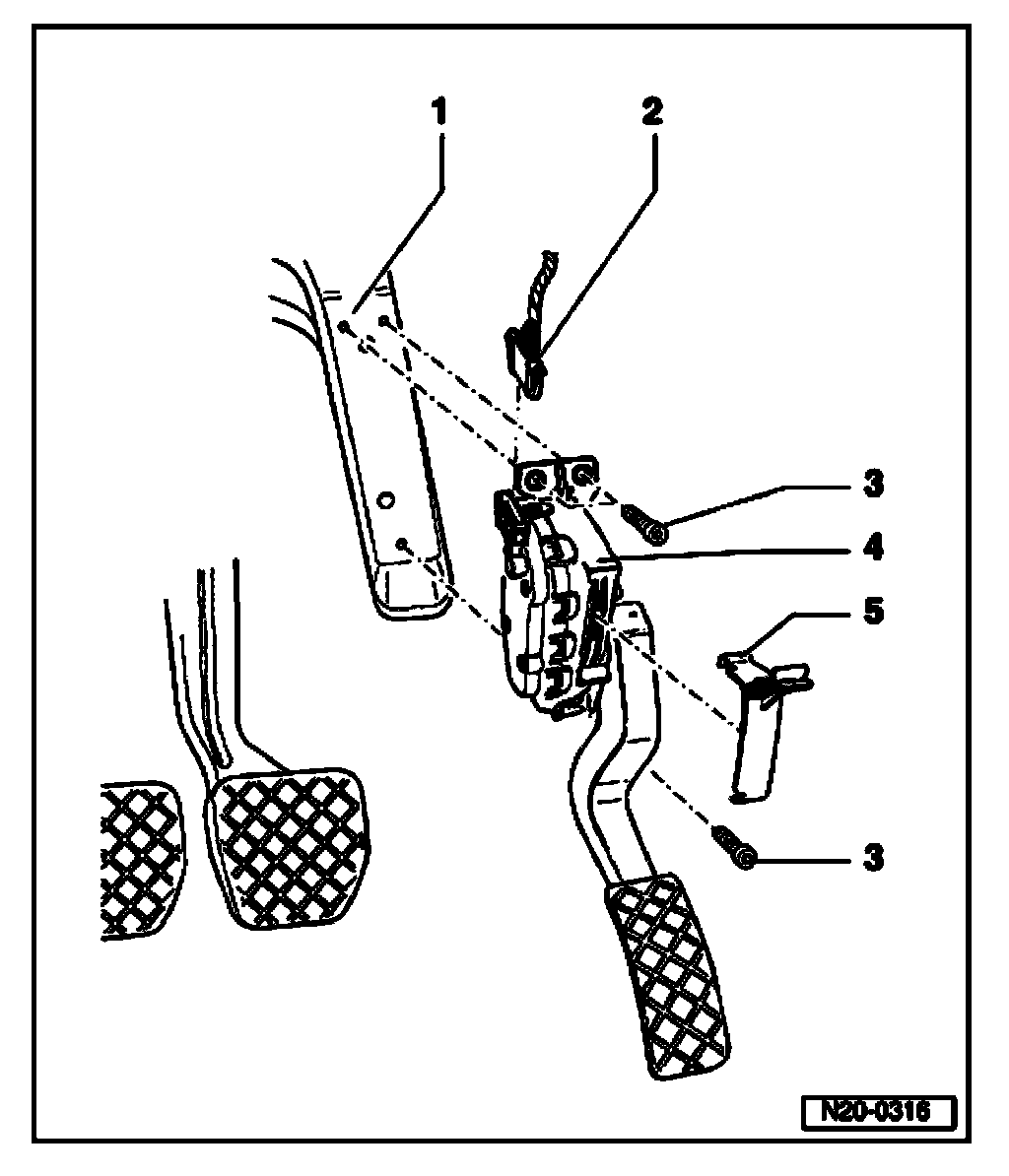

Electronic Power Control (EPC), Servicing 1.
Bracket
2.
Connector
-
Black, 6-pin
3.
10 Nm 4.
Throttle Position (TP) sensor -G79- and Sender 2 for accelerator pedal position -G185-
-
Sensors enclosed in one unit
-
Not adjustable
-
Remove footwell cover to remove sensor
5.
Bracket
-
For footwell cover
-
Clipped to
throttle position sensor
