Brake Light Switch, Old Version

Brake Light Switch, Old Version

• Only use new brake light switches.

• The most noticeable difference is the new brake light switch has a clear rounded end on the plunger head - A -.





Removing

- Remove trim on driver side..

- If necessary, remove the footwell vents.

- Disconnect connector from brake light switch.

The brake light switch must only be removed when plunger is pressed (brake pedal not operated), otherwise the retainer on the brake light switch will be damaged.

- Remove brake light switch by turning 45° to left.

Installing, Adjusting and Locking

Before installing the brake light switch, grease the clear rounded end on the plunger head with Polycarbamide grease (G 052 142 A2).

• When installing brake light switch, brake pedal must always remain in rest position. The brake pedal may only be touched with the brake light switch plunger head during the entire assembly procedure.

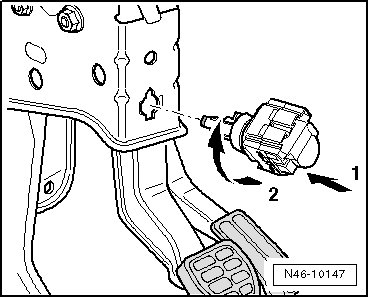

- Guide the brake light switch through assembly opening - arrow 1 - and press it against the pedal with the plunger head. Then turn the brake light switch 45° to the right - arrow 2 -, until it noticeably engages.





- Connect brake light switch connector.

- Check function of brake light.

- Install footwell vent.

- Install trim on driver side..
