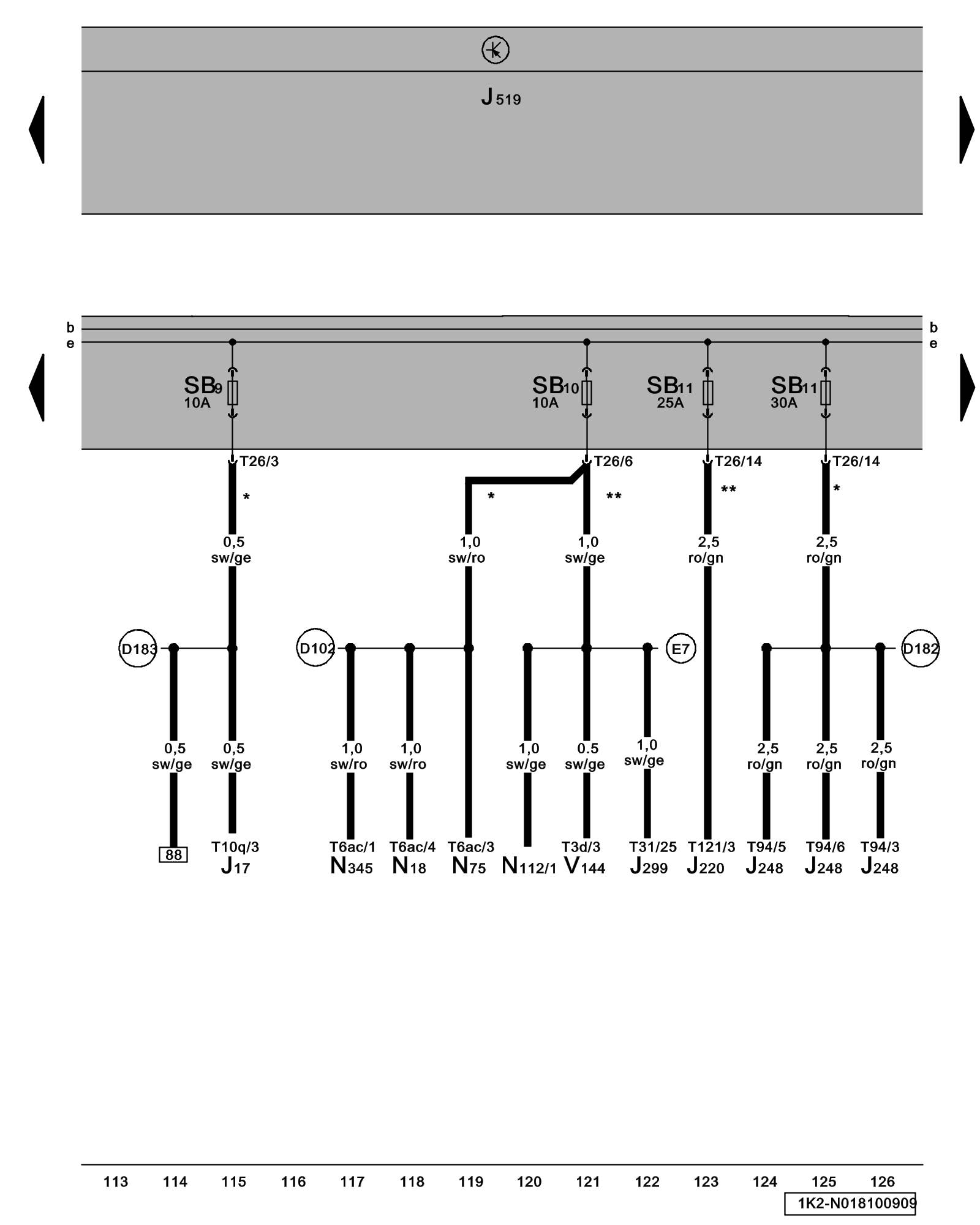

Diagram 18/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SB9, SB10, SB11





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel Pump (FP) Relay Locations

J220 - Motronic Engine Control Module (ECM)

J248 - Diesel Direct Fuel Injection (DFI) Engine Control Module

J299 - Secondary Air Injection (AIR) Pump Relay

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

N18 - EGR Vacuum Regulator Solenoid Valve

N75 - Wastegate Bypass Regulator Valve

N345 - Exhaust Gas Recirculation (EGR) Cooler Switch-over Valve

SB9 - Fuse 9 (in fuse holder)

SB10 - Fuse 10 (in fuse holder)

SB11 - Fuse 11 (in fuse holder)

T6ac - 6-Pin Connector

T10q - 10-Pin Connector

T26 - 26-Pin Connector

T31 - 31-Pin Connector

T94 - 94-Pin Connector

T121 - 121-Pin Connector

(D102) - Connection 2, in engine compartment wiring harness

(D182) - Connection 3 (87a) (in engine wiring harness)

(D183) - Connection 4 (87a) (in engine wiring harness)

(E7) - Connection (87a)(in Motronic wiring harness

* - Diesel engines only

** - Gasoline engines only

Previous Diagram 18/9 (Tracks 99-112)

Next Diagram 18/11 (Tracks 127-140)
