Airbag Control Module -J234-

Control modules in interior

Airbag Control Module -J234-




Component Location:







Below front center console -Arrow-


50-pin, Pin Arrangements:







A - Airbag Control Module -J234-
Connector:

B - 50-Pin Connector -T50-

Note:
• Applicable through October 2007

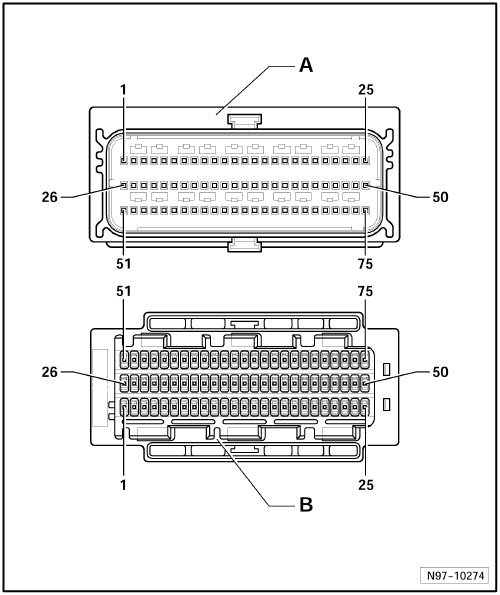

75-pin, Pin Arrangements:







A - Airbag Control Module -J234-
Connector:

B - 75-Pin Connector -T75-

Note:
• Applicable through October 2007




100-pin, Pin Arrangements:







A - Airbag Control Module -J234-
Connector:

B - 100-Pin Connector -T100-

B - 100-Pin Connector -T100a-

Note:
• Applicable from November 2007
