System Specifications

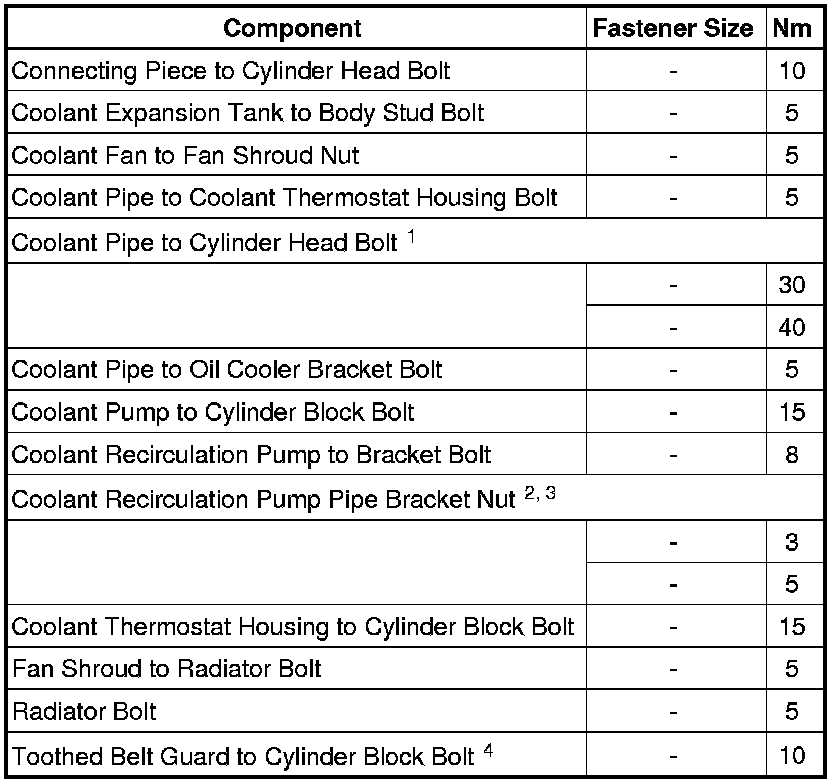

Fastener Tightening Specifications






• 1 For bolt tightening clarification, see - items 1 and 2 - in the => [ Cooling System Components Overview, Engine Side ] Cooling System Components Overview, Engine Side.

• 2 For nut tightening clarification, see - items 1 and 7 - in the => [ Coolant Recirculation Pump (V50) Overview, with a Bypass Thermostat ] Coolant Recirculation Pump (V50) Overview, with a Bypass Thermostat.

• 3 For nut tightening clarification, see - items 1 and 10 - in the => [ Coolant Recirculation Pump (V50) Overview, without a Bypass Thermostat ] Coolant Recirculation Pump (V50) Overview, without a Bypass Thermostat

• 4 Install using locking fluid.
