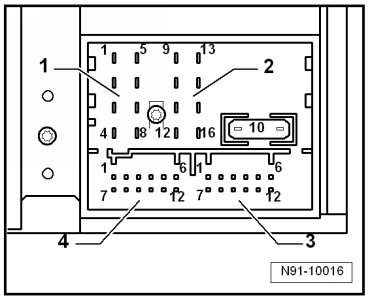

12-Pin Connector 4, AUX Audio Input, CD Changer Control and CD Audio Input Signals







12-Pin Connector 4, AUX Audio Input, CD Changer Control and CD Audio Input Signals






1 AUX input, audio, positive, left
2 AUX input, audio, negative
3 CD changer, audio, negative
4 CD changer, voltage supply, positive
5 Not assigned
6 CD changer, DATA OUT Bus
7 AUX input, audio, positive, right
8 CD changer, left port audio, positive
9 CD changer, right port audio, positive
10 CD changer, control signal
11 CD changer, DATA IN Bus
12 CD changer, CLOCK Bus
