Instrument Cluster Control Module - J285/ Anti-Theft Immobilizer Control Module - J362

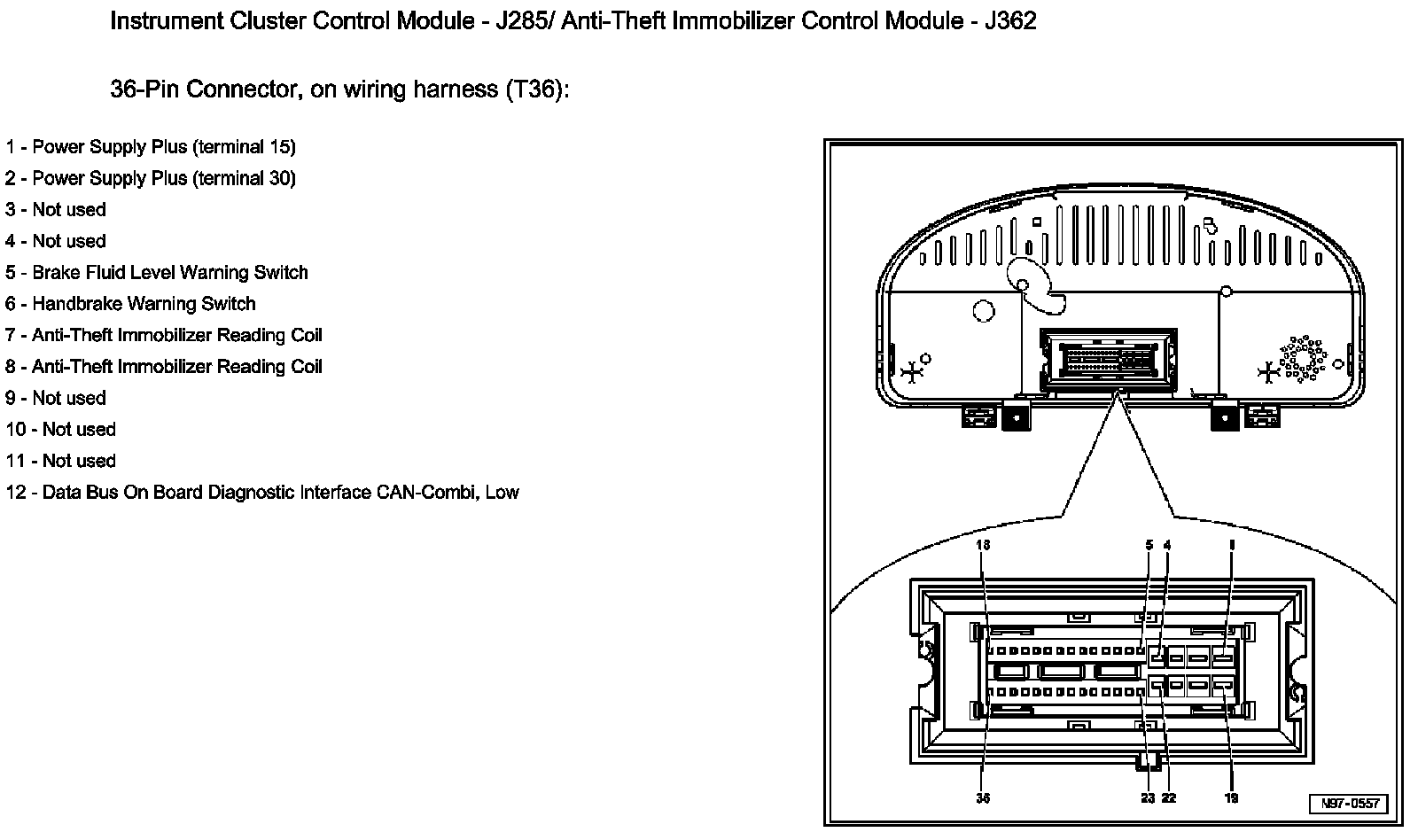

Instrument Cluster Control Module - J285/ Anti-Theft Immobilizer Control Module - J362 (Part 1):

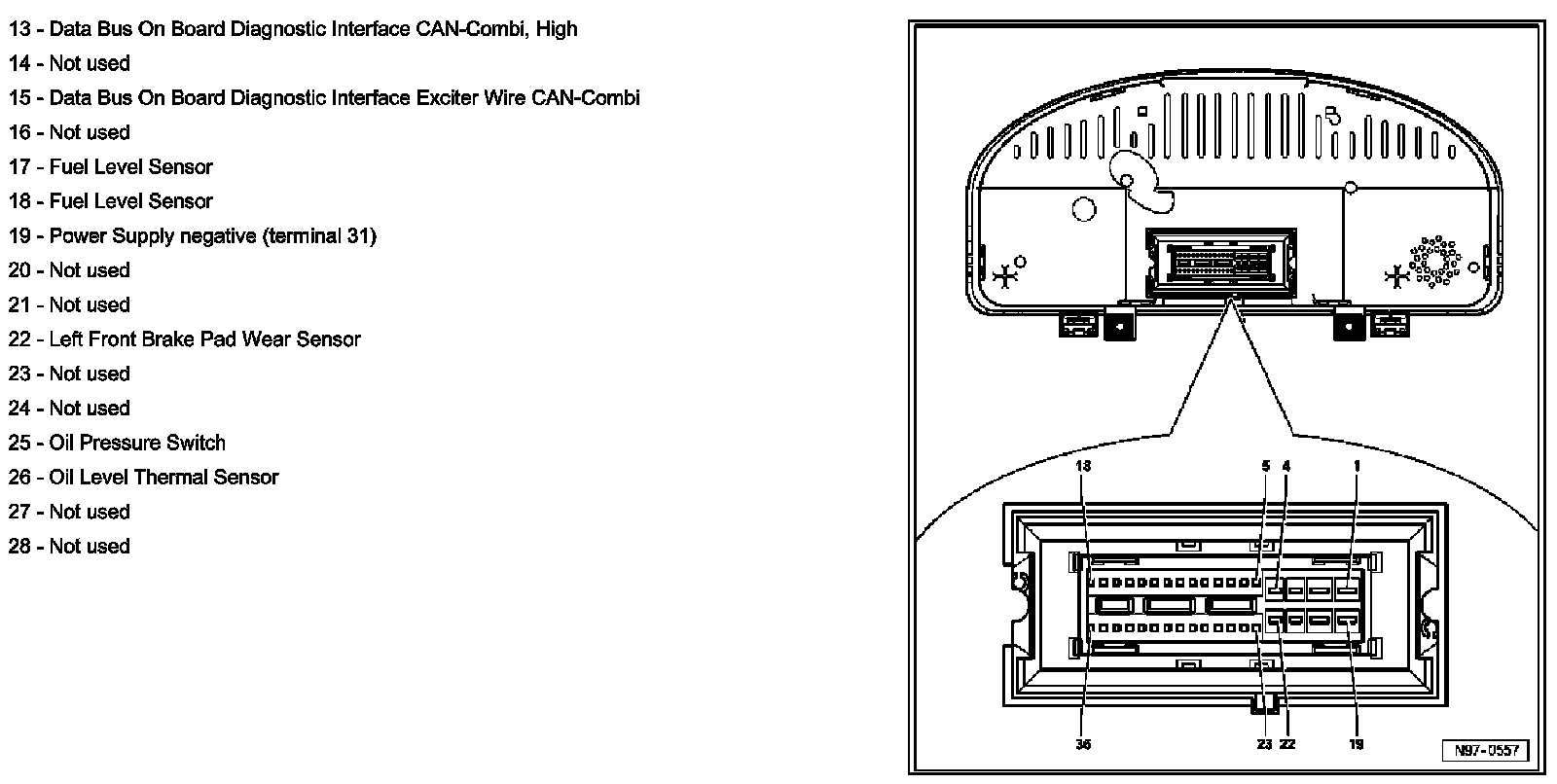

Instrument Cluster Control Module - J285/ Anti-Theft Immobilizer Control Module - J362 (Part 2):

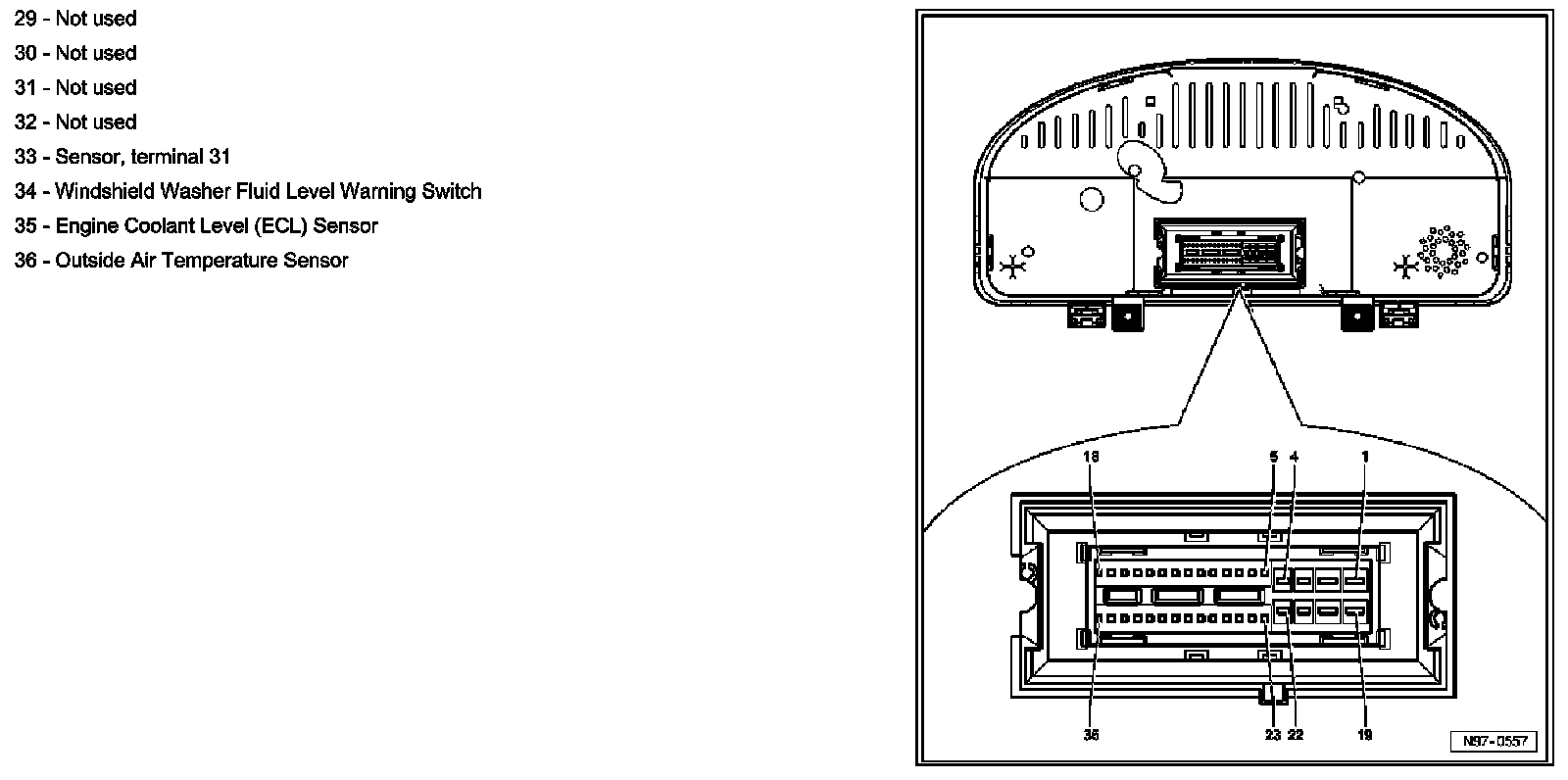

Instrument Cluster Control Module - J285/ Anti-Theft Immobilizer Control Module - J362 (Part 3):
