Ignition/Glow Plug System

Safety Precautions

To reduce the risk of personal injury and/or damage to the fuel injection and ignition system, always observe the following:

• Do not touch or disconnect the ignition coils with the power output stages when the engine is running or turning at starting RPM.

• The ignition must be turned off before connecting or disconnecting injection and ignition system wiring or tester cables.

• If the engine is to be cranked at starting RPM without starting:

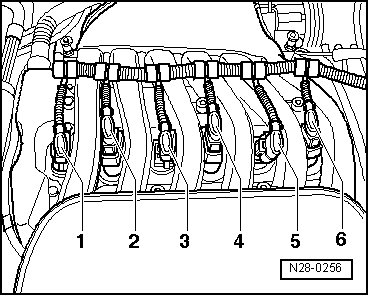

- Using the assembly tool (T10118) , disconnect connectors from ignition coils 1 through 6.






If special testing equipment is required during road test, note the following:

• Test and measuring instruments must be secured to the rear seat and operated by a second person from this location.

If the vehicle is involved in a collision while testing and measuring equipment is operated from the front passenger seat, the person sitting in that seat could be seriously injured when the airbag deploys.
