Firing Order





Ignition sequence 1- 3 - 4 - 2

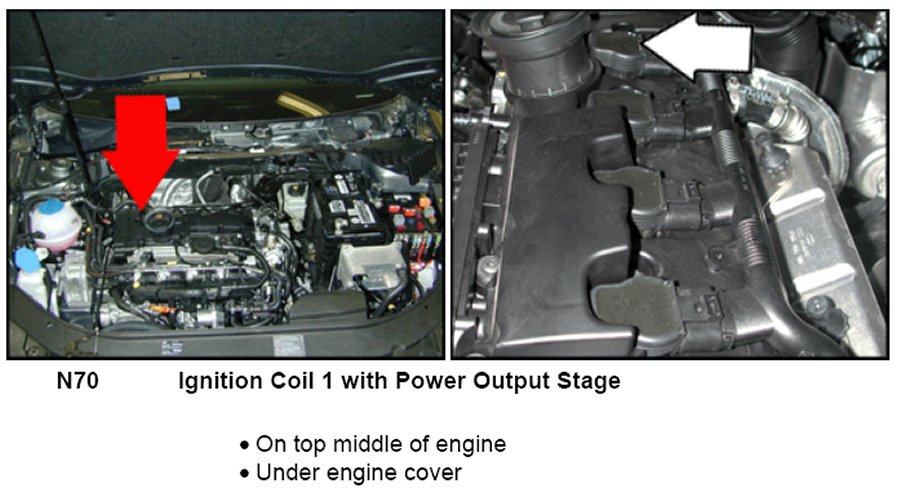

Firing Order & # 1 Cylinder:






Spark plugs
VW/Audi 101 905 631 B
Electrode gap 0.7 to 0.8 mm
Torque specifications 25 Nm
