A/C Refrigerant System Components, Servicing

A/C Refrigerant System Components, Servicing

CAUTION:
- Frostbite danger:
- High pressure refrigerant may leak out if refrigerant circuit is not discharged.
- Always evacuate refrigerant prior to opening refrigerant circuit.

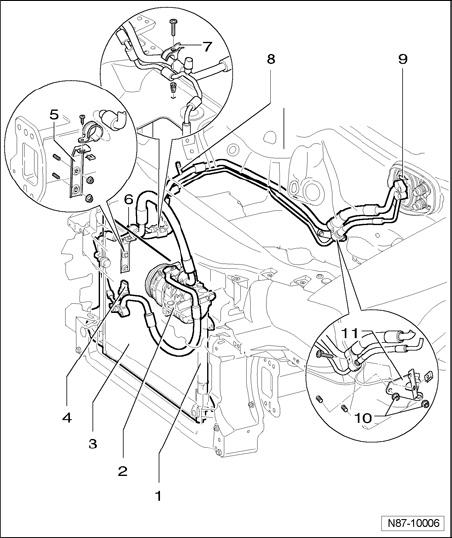

1. Fluid reservoir with dryer cartridge
2. A/C compressor
- Observe notes for installing A/C compressor

3. Condenser
4. High Pressure Sensor G65

5. Bracket
6. High pressure service valve
- Capacities

7. Bracket
8. Low pressure service valve
- Capacities

9. Expansion valve
- Servicing function

10. Hex nut
- 20 Nm

11. Bracket







High Pressure Sensor G65, removing and installing
- Remove lower noise insulation (under engine).
- Disconnect electrical connection from high pressure sensor -1-.
- Remove sensor -1- from connection of refrigerant line.

NOTE:
- Replace O-ring -2-
- Depending on engine version, sensor -1- may be installed on a different side in the vicinity of the condenser.
