Automatic Headlamp Control, Checking Function

Automatic Headlamp Control, Checking Function

• The automatic headlamp control is also called automatic headlamps.

• Vehicle must be in daylight.

Checking in daylight or brightness

- Switch the ignition on.

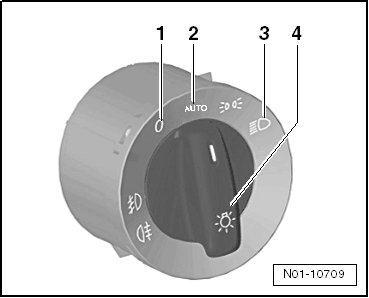

- Turn the headlamp switch - 4 - to the automatic headlamp control position - 2 -.






The headlamp should not come on when it is bright.

Checking at night or in darkness

• Ignition is switched on

• The headlamp switch is in the automatic headlamp control position.

Rain/Light Recognition Sensor is secured to rearview mirror bracket.

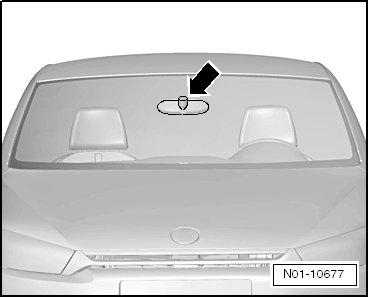

Rain/Light Recognition Sensor is located in upper center area of front windshield - arrow -.

- Cover the base of the interior rearview mirror - arrow - with your hand or some suitable object.

The decrease in light is measured and the headlamps are switched on.

- Turn the headlamp switch - 4 - to O - 1 - and turn off the ignition.
