Auto Transmission

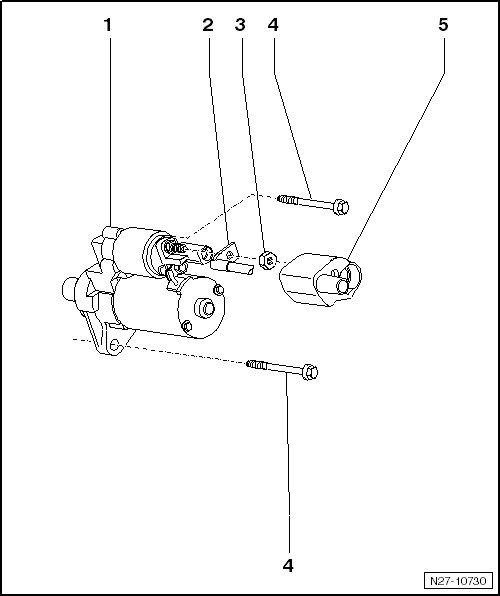

Starter Overview 1 Starter •
Checking, refer to=> [ Starter, Checking ]
Testing and Inspection.
2 Connection, B+ Wire To Starter 3 Nut •
15 Nm
4 Bolt •
75 Nm
5 Cap No Illustration
•
Screw, air filter housing to body - 10 Nm
•
Ground cable to automatic transmission housing: 15 Nm
