Window Guide Trim Molding

Window Guide Trim Molding

Removing

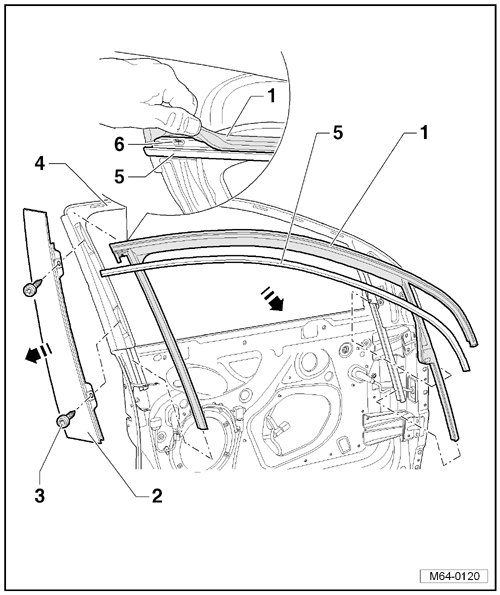

- Pull the rear of the window guide - 1 - to the side slightly.

- Remove the expanding rivet - 6 - from the window guide - 1 -.

- Remove the trim molding - 5 - from the window guide - 1 - in the - direction of the arrow -.

The trim - 2 - must not be removed.





Installing

- Spray soap/water solution on to window guide.

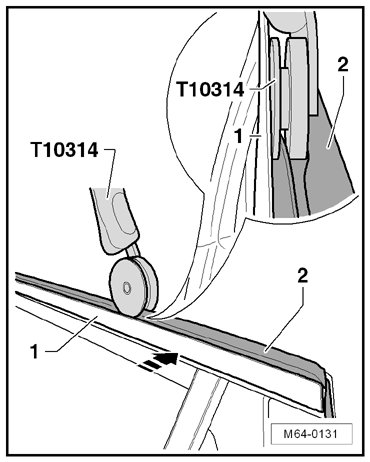

- Press the trim molding - 1 - by hand evenly in the - direction of the arrow - into the window guide - 2 -.





- Then press the window guide - 2 - correctly onto the trim molding mount - 1 - using the Roller (T 10314).

Further installation is in reverse order of removal.
