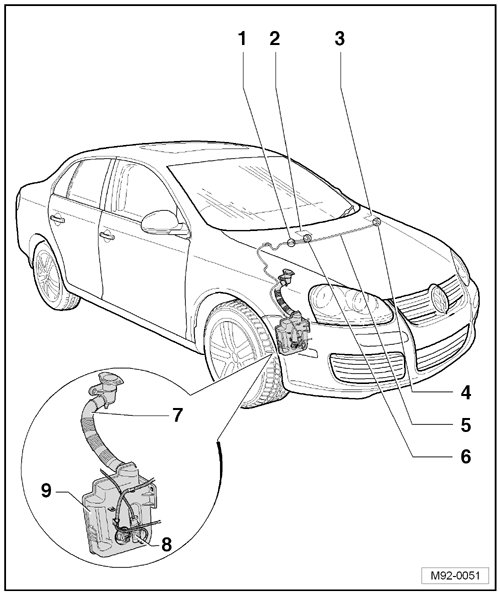

Windshield Washer System Overview

Windshield Washer System Overview






1 Y-connection

• Divides washer fluid line to the windshield washer spray nozzles.

2 Right Windshield Washer Spray Nozzle

• Removal and installation, refer to => [ Windshield Washer Spray Nozzles ] Windshield Washer Spray Nozzles.

• Adjusting, refer to=> [ Windshield Washer Spray Nozzles, Adjusting ] Windshield Washer Spray Nozzles, Adjusting.

3 Left Windshield Washer Spray Nozzle

• Removal and installation, refer to => [ Windshield Washer Spray Nozzles ] Windshield Washer Spray Nozzles.

• Adjusting, refer to=> [ Windshield Washer Spray Nozzles, Adjusting ] Windshield Washer Spray Nozzles, Adjusting.

4 Angle Coupling

• Connection to the left windshield washer spray nozzle.

• Overview of washer fluid hose couplings.

5 Hose

• Hose repair.

6 Angle Coupling

• Connection to the right windshield washer spray nozzle.

• Overview of washer fluid hose couplings.

7 Reservoir Filler Tube For Windshield Washer System and Headlamp Cleaning System

• Removal and installation, refer to => [ Filler Tube ] Filler Tube.

8 Windshield and Rear Window Washer Pump (V59)

• Removal and installation, refer to => [ Windshield and Rear Window Washer Pump ] Service and Repair.

9 Windshield Washer System and Headlamp Washer System Washer Fluid Reservoir

• Removal and installation, refer to => [ Reservoir ] Reservoir.

- Windshield Washer Fluid Level Sensor (G33)

• Removal and installation, refer to => [ Windshield Washer Fluid Level Sensor ] Service and Repair.

No Illustration

• Windshield and headlamp washer fluid reservoir to body: 8 Nm
