Power and Ground Distribution: Testing and Inspection






Vehicle Diagnostic, Testing and Information System VAS 5051

CAUTION!
• During road tests using a vehicle diagnostic and information system, there is the hazard of extreme to lethal injuries!

• If vehicle diagnostic and information system is deposited in the action area of an airbag during a road test, here is the hazard of extreme to lethal injuries in the event the airbag deploys!

• During road tests, have a second person sitting in the rear seat to operate the vehicle diagnostic and information system.

• All work instructions can be reached in the operating modes " Guided Fault Finding" and "Guided Functions".

• Additional information:

202Vehicle Diagnosis, Testing and Information System VAS 5051

294Online connection of VAS 5051

- Connect Vehicle Diagnostic, Testing and Information System (VAS 5051B).

Connecting

• Be sure to read the operating instructions for the (VAS 5051B ) under "Administration" and "Operating Handbook ".

Special tools, testers and auxiliary items required

• Vehicle Diagnostic, Testing and Information System ( VAS 5051B)





- Apply the parking brake.

- In vehicles with automatic transmissions, move the selector lever to the "P" or "N" position.

- In vehicles with manual transmissions, move the shift lever to the neutral position.

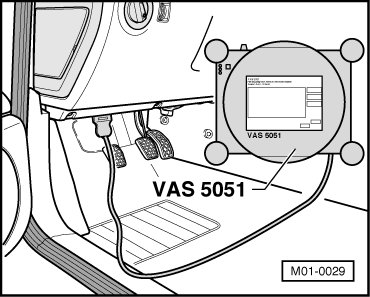

- With the ignition switched off, connect the (VAS 5051B) to the diagnostic connection.





- Switch on tester - arrow -.
