Parking Assist Control Module: Service and Repair






Parking Aid

Parking Aid Control Module

The Parking Aid Control Module (J446) is located behind the right luggage compartment side trim.

CAUTION!
• Turn off the ignition and all electrical components.

• Remove the key.

Removing

- Remove the right luggage compartment trim.

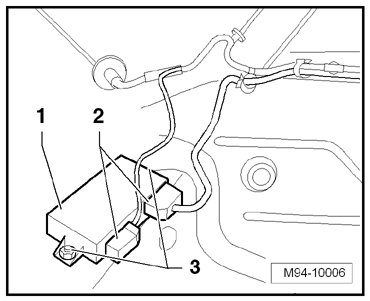

- Disconnect the connectors - 2 - on the Parking Aid Control Module (J446) - 1 -.





- Remove the nuts - 3 - and remove the Parking Aid Control Module (J446) - 1 -.

Installing

Install in reverse order of removal, noting the following:

- Tighten the nuts to 3 Nm.
