Structural Brace: Service and Repair

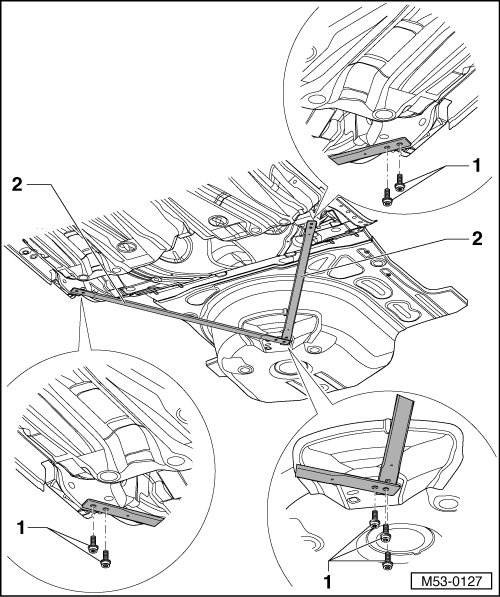

Body, Rear => [ Diagonal Struts ] Diagonal Struts Removing -
Remove bolts -
1 -.
•
Bolts -
1 - must always be replaced after loosening.
-
Remove diagonal struts -
2 -.
Installing •
To tighten bolts -
1 -, vehicle must be placed on even surface.
-
Attach diagonal struts -
2 - with bolts -
1 -.
-
Place vehicle on even surface.
-
Tighten bolt -
1 - to 40 Nm + 120°.
