Trunk / Liftgate Lock: Service and Repair
Rear Lid

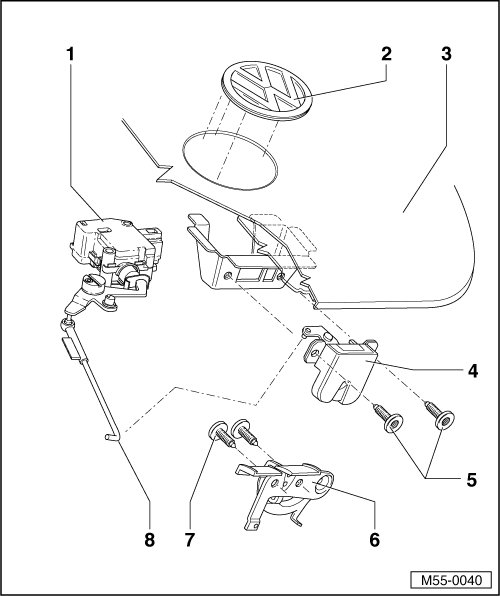

Rear Lid Lock, USA, from September 2001
1 Rear Lid Release Motor
2 VW Emblem
3 Rear Lid
4 Lock
• Removing:
- Remove rear lid trim.
- Disconnect connector on lock.
- Unhook operating rod - 8 -, remove bolts - 5 - and remove rear lid lock.
5 Bolt
• 23 Nm
6 Closure Plate
• Adjusting - within elongated holes
• Removing:
- Remove cover for loading edge
- Remove bolts - 7 -.
7 Bolt
• 23 Nm
8 Operating Rod
