Procedures
Lock Carrier Service Position -
Remove front part. Refer to=> [ Front Part Assembly Overview ]
Front Part Assembly Overview.
-
Disengage
hood release cable at lock.
-

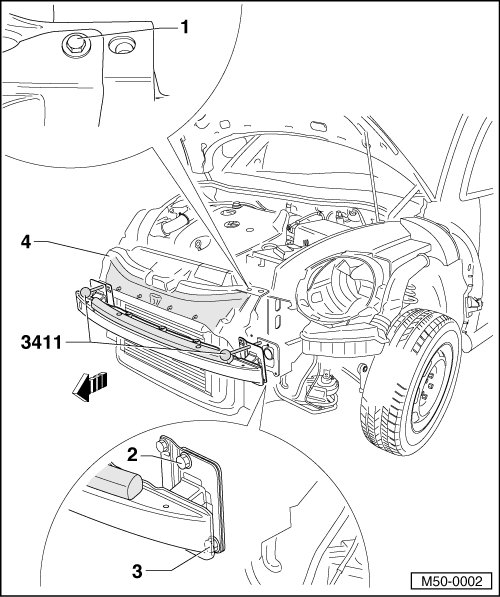

Remove one bolt each -
2 - from longitudinal members and bolt in Support Tool (3411) at right and left longitudinal members for this.
-
Remove bolts -
1 - and -
3 - at left and right and pull lock carrier toward front in area of Support Tool (3411).
