Ignition Switch

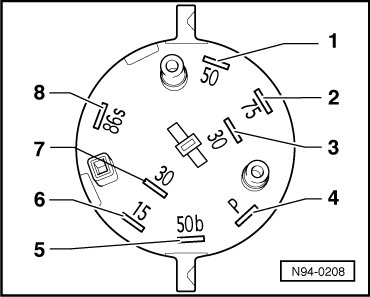

Ignition Switch Connector Assignment

8-pin Connector

1. Terminal 50

2. Terminal 75

3. Terminal 30

4. Terminal P

5. Terminal 50b

6. Terminal 15

7. Terminal 30

8. Terminal 86s
