Windshield Washer Switch

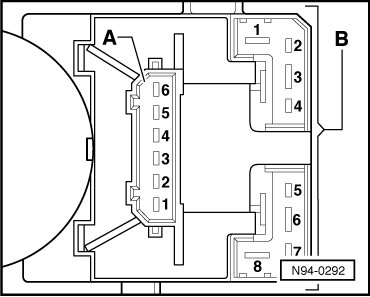

Windshield Wiper/Washer Switch and Multifunction Display Connector Assignments

CAUTION!
When disconnecting and connecting the Battery ( A), the procedure must be followed as described in the Repair Information, refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

4-pin connector A, 4-pin





1. not used

2. not used

3. not used

4. not used

5. Windshield Wiper Intermittent Regulator (E38 ) for the Wiper/Washer Intermittent Relay (J31 )

6. Windshield Wiper Intermittent Regulator (E38 ) -> terminal 31

8-pin connector B, Windshield Wiper/Washer Intermittent Switch (E22)





1. Terminal 53

2. Terminal 31

3. Terminal 53e

4. Terminal 53c

5. not used

6. Terminal 53b

7. Interval operation

8. Terminal 53a
