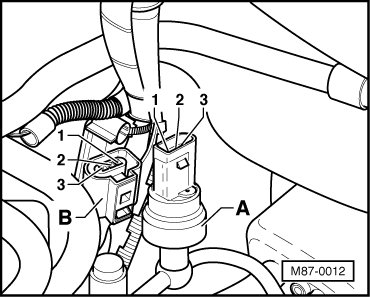

High Pressure Sensor, Multi-Pin Connector Assignments
High Pressure Sensor, Multi-Pin Connector Assignments •
Contact 1: Ground (GND)
•
Contact 2: Square wave signal (output) to Coolant Fan Control (FC) Module (J293) and Motronic Engine Control Module (ECM) (J220)
•
Contact 3: Terminal 15 (ignition on)
•
A/C Clutch (N25) is switched off when connector -
B - is disconnected
