Left Instrument Panel Fuse Holder






Fuse Panel and Relay Carrier

CAUTION!
When disconnecting and connecting the Battery ( A), the procedure must be followed as described in the Repair Information. Refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

Left Instrument Panel Fuse Holder

CAUTION!
When disconnecting and connecting the Battery ( A), the procedure must be followed as described in the Repair Information. Refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

CAUTION!
• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409), screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Disconnect the Battery (A). Refer to => [ Battery A, Disconnecting and Connecting ] Battery A, Disconnecting and Connecting.

- Carefully pry out the side covers from the instrument panel.

- Remove the instrument panel trim panel on the driver side.

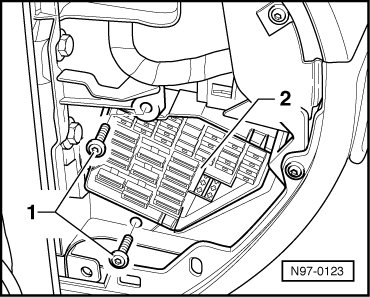

- Remove the screws - 1 - and remove the fuse panel - 2 -.





Installing

Install in reverse order of removal, noting the following:

- Tighten the screw to 3 Nm.

Current fuse assignments.
