Passive Occupant Detection System (PODS) Underside Assembly Overview, USA






Airbag

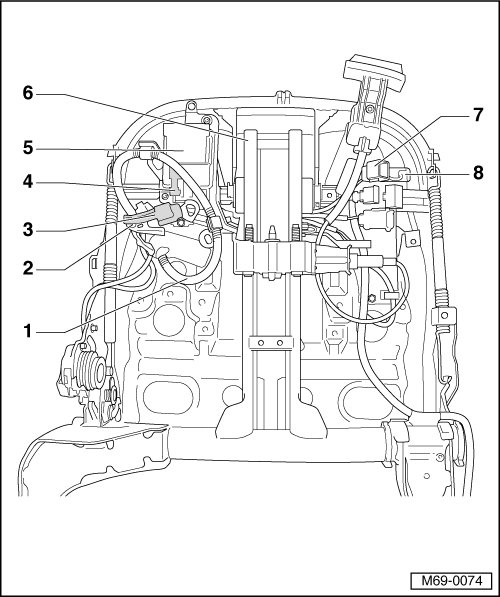

Passive Occupant Detection System (PODS) Underside Assembly Overview, USA





1 - Pressure Transfer Hose

2 - Passenger Occupant Detection System Pressure Sensor (G452)

3 - Passenger Occupant Detection System Pressure Sensor (G452) harness connector

• Do not disconnect.

4 - Passenger Occupant Detection System Seat Belt Force Sensor (G453) harness connector

• Do not disconnect.

5 - Passenger Occupant Detection System Control Module (J706)

6 - Seat Frame

7 - Connector

8 - Passenger Occupant Detection System Seat Belt Force Sensor (G453) Harness Connector
