09G Transmission






Fastener Tightening Specifications

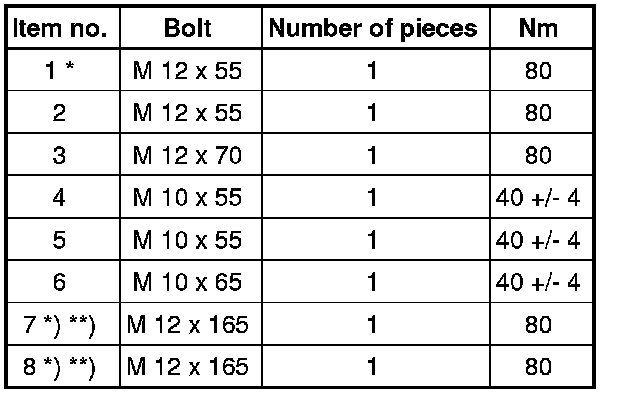

Transmission to engine





- Replace bolts.





*) Bolt with M8 threaded pin

**) This bolt also secures the starter to the transmission.

A: Alignment bushing for centering

Both bolts items 7 and 8 secure a bracket as well.

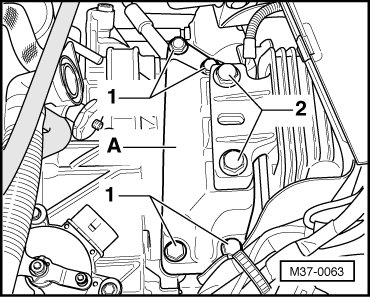

Transmission bracket - A - to transmission





- Replace bolts.





Transmission bracket - A - to transmission mount

- Replace bolts.

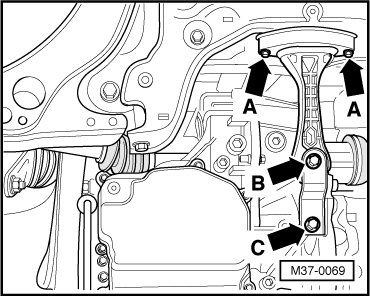

Pendulum support to transmission and subframe





- Replace bolts.

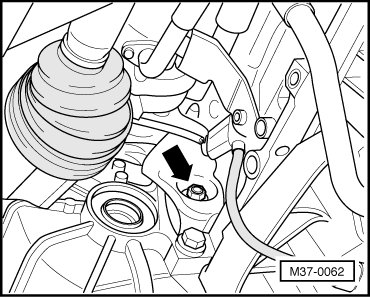

Torque converter nuts - arrow -, Qty. 6





- Replace torque converter nuts.





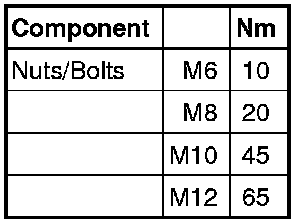

All other bolted connections:

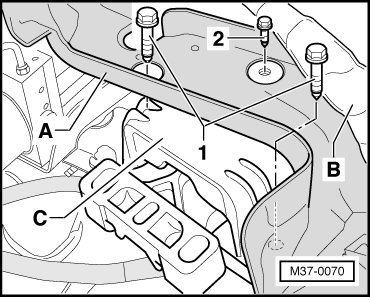

- Install transmission mount - C -.





- Both bolts - 1 - must be replaced.
