Fastener Tightening Specifications - Controls, Housing






Fastener Tightening Specifications





Transmission to Engine Bolt Tightening Specification





Item - A - centering sleeves

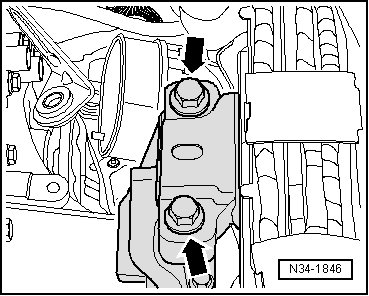

Transmission Bracket to Transmission Bolt Tightening Specification





- Tighten bolts - arrows - to 40 Nm + 90° turn. Always replaces bolts.

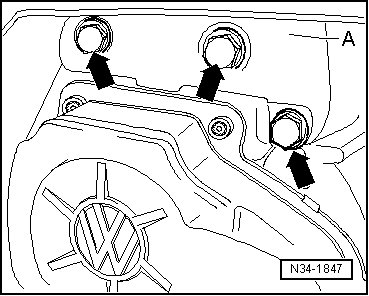

Transmission Mount to Chassis Bolt Tightening Specification





- Tighten bolts- arrows - to 60 Nm + 90° turn. Always replace bolts.

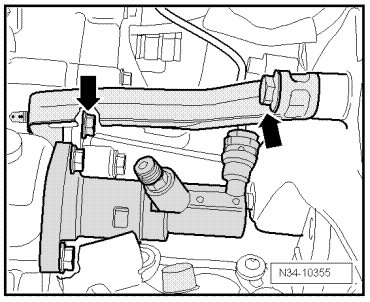

Transmission Support to Transmission Bracket and Transmission Bolt Tightening Specification





- Tighten bolts - arrows - to 20 Nm + 90° turn. Always replace bolts.
