Input Shaft, Output Shaft, Differential and Shift Fork Assembly Overview

Input Shaft, Output Shaft, Differential and Shift Fork Assembly Overview

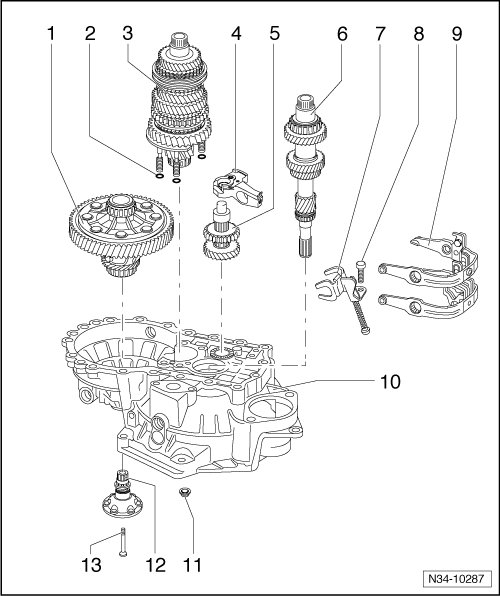

1 Differential

• Disassembling and assembling => [ Differential ] Differential.

2 Seal

• 4x

• Always replace

3 Output shaft

• Disassembling and assembling => [ Output Shaft ] Output Shaft.

4 Reverse gear shaft support

• Disassembling and assembling => [ Reverse Gear Shaft ] Reverse Gear Shaft.

5 Reverse gear shaft

• Disassembling and assembling => [ Reverse Gear Shaft ] Reverse Gear Shaft.

6 Input shaft

• Disassembling and assembling => [ Input Shaft ] Input Shaft.

7 Reverse gear shift fork

• Disassembling and assembling => [ Shift Forks ] Shift Forks.

• Installed position => [ Assembling ] Transmission.

8 Internal Torx head bolt, 25 Nm

9 Shift mechanism

• (Shift forks)

• Disassembling and assembling => [ Shift Forks ] Shift Forks.

10 Clutch housing

• Servicing => [ Transmission and Clutch Housing ] Transmission and Clutch Housing.

11 Hex nut, 25 Nm + an additional 90° (1/4 turn)

• 4 nuts for bearing mount

12 Flanged shaft with compression spring

• Removing and installing => [ Removal and Installation ] Table of Contents.

• Assembling => [ Differential ] Differential.

13 Countersunk screw, 25 Nm
