Front Door Window Assembly Overview






Door Windows

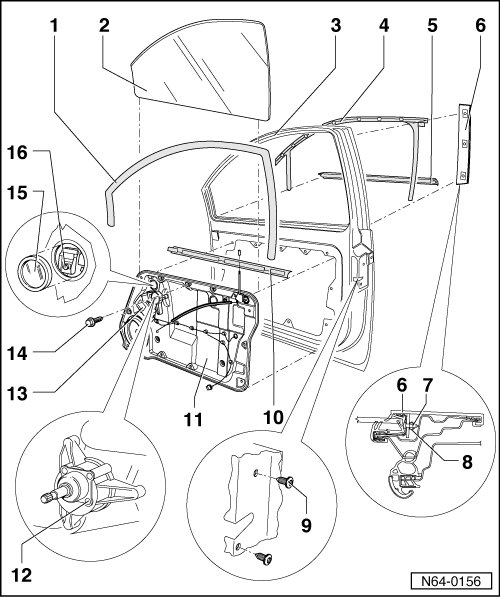

Front Door Window Assembly Overview





1 Window Guide

• Inserted on flange

2 Door window

• Removing, refer to=> [ Front Door Window ] Service and Repair

• Adjusting, refer to => [ Front Door Window, Adjusting ] Front Door Window, Adjusting

3 Door

4 Outer Window Guide

• Inserted on flange

5 Window Recess Seal

• Inserted on flange

6 Face Plate

7 Screw

8 Spring Nut

9 Bolt

• 20 Nm

10 Window Recess Seal

• Inserted on flange

11 Subframe

• Removing and installing, refer to => [ Subframe ] Service and Repair

• Window regulator is a component of the subframe

12 Mechanical Window Regulator Crank Mechanism

• Bolted on to subframe from rear

13 Window Regulator Motor

• Bolted on to subframe from front

14 Bolt

• 8 Nm

15 Cover Cap

16 Bolt

• 10 Nm
