Lowering Automatic Rollover Protection






Automatic Rollover Protection, Convertible


Lowering Automatic Rollover Protection

CAUTION!
When lowering the automatic rollover protection, avoid injuring or pinching your hand.

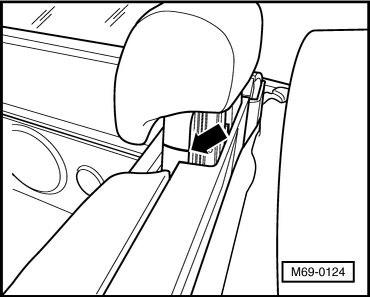

- Press and hold locking mechanism - 1 - in the direction of - arrow A -.





- Push module - 2 - down in the direction of - arrow B - until it engages.

- Release the locking mechanism when the rollover protection is correctly engaged - arrow -





- Push the module down further until it engages.
