Overview Of Fuses

Position of fuses, from July 2005

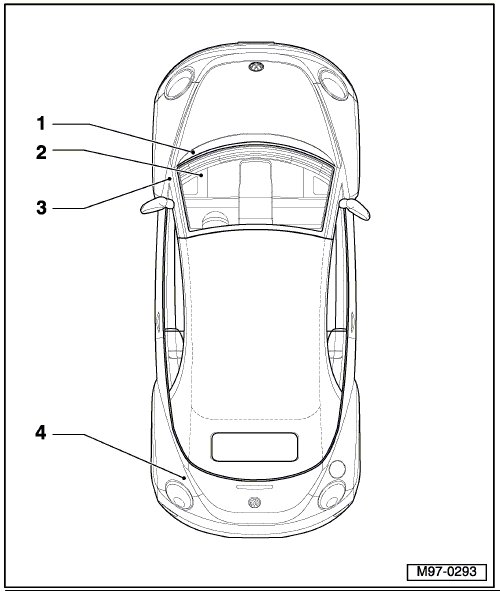

Overview of Fuses

1 - Position of fuses on fuse panel/battery
• => Position Of Fuses On Fuse Panel / Battery

2 - Position of Fuses on Relay Panel
• => Relay and Fuse Arrangements On Relay Panel

2 - Position of Fuses on 13 position Auxiliary Relay Carrier above Relay Panel
• => Position Of Fuses On 13 Position Auxiliary Relay Carrier Above Relay Panel

3 - Position of fuses in fuse panel, instrument panel, left
• => Fuse Arrangements in Fuse Panel, Instrument Panel, Left
