Firewall: Service and Repair
Bulkhead
=> [ Bulkhead Assembly Overview ]

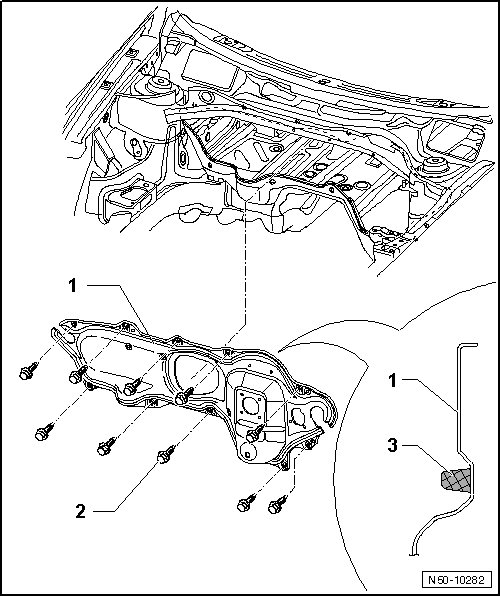

Bulkhead Assembly Overview
• The bulkhead - 1 - is bolted and also bonded in with PUR adhesive sealing material - 3 -.
1 Bulkhead
• Removing:
- After unscrewing of bolts - 2 -, cut through adhesive bead using workshop tools.
2 Bolt
• Quantity: 10
• Tightening specification: 25 Nm
3 PUR Adhesive Sealant
• DH 009 100 03
• Bead diameter: width = 8 mm, height = 10 mm
• Minimum curing time, refer to => [ Minimum Curing Time ] Flush Bonded Windows Overview
