Component Locations Overview

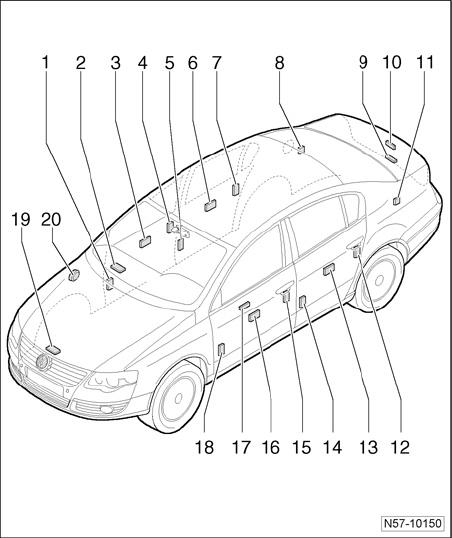

Component Locations Overview Of Components For Central Locking System







1 - Coupling station
- Location: A-pillar, right
- To disconnect harness connector, release boots at pillar

2 - Comfort System Central Control Module -J393-
- Location: Under instrument panel, front passengers side.

3 - Front Passengers Door Control Module -J387-
- Integrated in window regulator motor.

4 - Front Passengers Door Central Locking Lock Unit -F221-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.

5 - Coupling station
- Location: B-pillar, right.
- To disconnect harness connector, release boots at pillar

6 - Right Rear Door Control Module -J389-
- Integrated in window regulator motor.

7 - Right Rear Central Locking Lock Unit -F223-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.

8 - Fuel Tank Lid Unlock Motor -V155-
- Location: Behind right luggage compartment trim.

9 - Rear Lid Handle Unlock Switch -E234-
- Component location: In VW emblem

10 - Rear Lid Lock Unit -F256-
- Location: Bolted on rear lid.

11 - Rear lid coupling station
- Location: Behind left luggage compartment trim.

12 - Left Rear Central Locking Lock Unit -F222-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.

13 - Left Rear Door Control Module -J388-
- Integrated in window regulator motor.

14 - Coupling station
- Location: B-pillar, left
- To disconnect harness connector, release boots at pillar

15 - Drivers Door Central Locking Lock Unit -F220-
- Door lock is secured to subframe.
- Electrical central locking system is integrated in door lock.

16 - Drivers Door Control Module -J386-
- integrated in window regulator motor.

17 - Central Window Regulator Switch (in drivers door) -E189-
- Location: installed in door trim
- Remove and installing central window regulator switch

18 - Coupling station
- Location: A-pillar, left
- To disconnect harness connector, release boots at pillar

19 - Front Hood Switch -F266-
- Removing and installing contact switch
- Location: On lid lock.
- Removing and installing lid lock

20 - Alarm Horn -H12-
- Location: Under right fender
