Trunk / Liftgate Lock: Service and Repair

Rear Lid

Rear Lid Lock

• If the rear lid does not open, use the emergency release inside the rear lid trim panel and open it manually. Refer to the Owner's Manual.

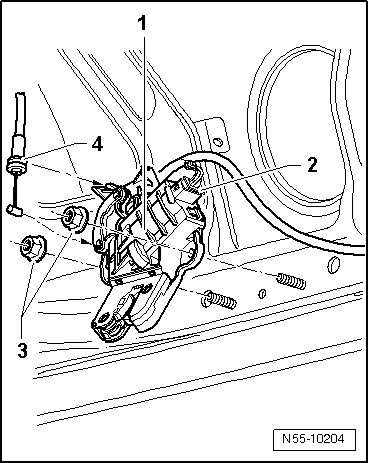

Removing

- Remove the rear lid trim panel.





• Unclip the emergency release cable - 4 - on the lock while removing the rear lid trim panel.

- Disconnect connector - 2 - from lid lock - 1 -.

- Remove the hex nuts - 3 - and remove lid lock - 1 - from the rear lid.

Installation

- Position the lid lock - 1 - on the rear lid and install hex nut - 3 -.





- Tightening specifications: nut - 3 - 8 Nm.

- Connect harness connector - 2 - to lid lock - 1 -.

Further installation is in reverse order of removal.

• Perform a function test on the unlocking components before closing the rear lid.
