Insulation Assembly Overview

Hood

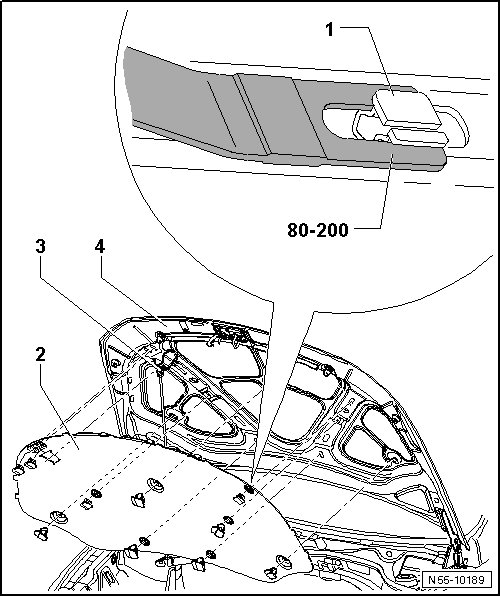

Insulation Assembly Overview

1 Retaining Clips

• Quantity: 10

2 Insulation

• Removing and Installing, refer to => [ Insulation ] Hood

3 Gas Strut

• Removing, refer to => [ Gas Strut ] Hood

4 Hood
