Short Version

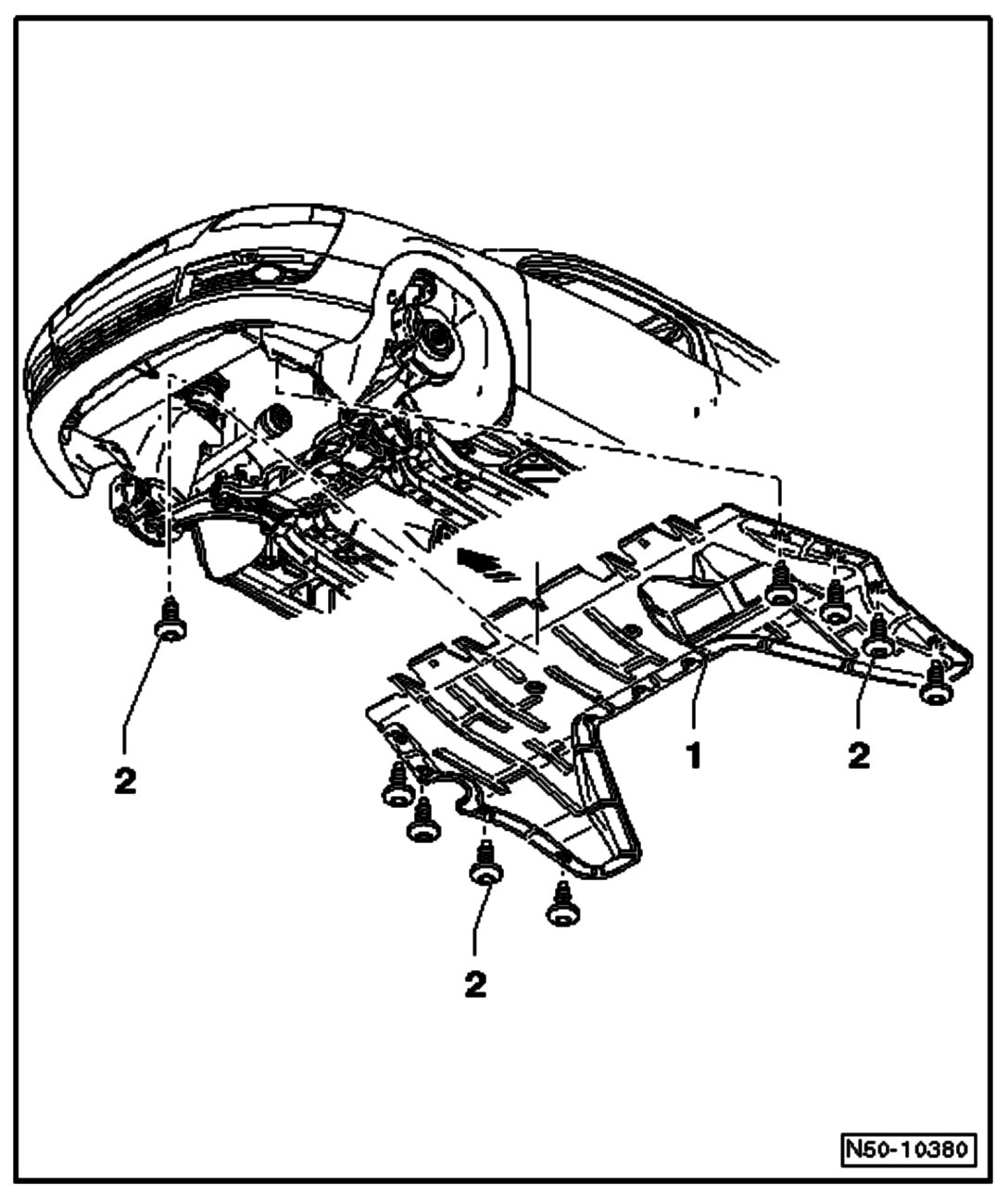

Noise Insulation Assembly Overview, Short VersionSlight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.
1.
Noise Insulation
-Arrow- points in direction of travel.
Removing:
Remove the bolts -2-.
Pull the noise insulation toward the rear out of the lock carrier mounts.
2.
Bolt
Quantity: 9
Tightening specification: 2 Nm
