Solar Panel Trim
Sunroof with Solar Panel, WebastoSolar Panel Trim -

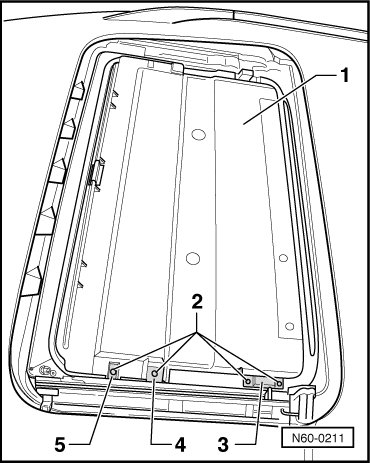

Remove the sunroof. Refer to => [ Sunroof Solar Panel ].
Sunroof Solar Panel -
Remove the bolts -
2 -.
-
Remove guide -
3 - for water channel and angle bracket -
4 -.
-
Push back roof trim slightly -
1 - and remove slider -
5 - from guide.
-
Pry out roof trim -
1 - upward.
