Sunroof Solar Panel






Sunroof with Solar Panel, Webasto

Sunroof Solar Panel

Removing

- Open the sunroof about 10 cm.

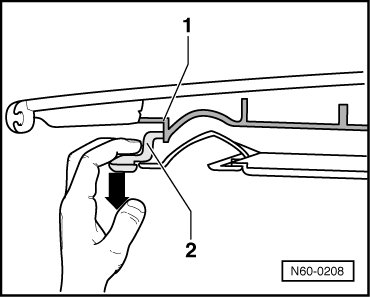

- Pull middle of trim - 2 - downward - arrow - out of the retainer - 1 -.

- Push the trim back.

- Tilt open the sunroof.

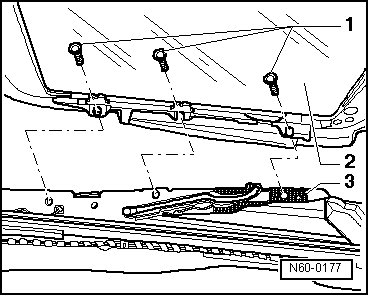

- Remove bolts (Torx socket (T25); 5 Nm).





- Remove solar panel upward.

Installing

• The panel must be installed in the neutral position (panel closed).

Neutral position:

The centering pin must align with the marking - arrow - on left and right guide rails.





If this is not the case, adjust parallel movement. Refer to => [ Solar Panel, Adjusting Parallel Movement ] Sunroof With Solar Panel, Webasto (Overview)

- Insert the sunroof panel from above and install the guide rail/panel mounting bolts.





- Slightly tighten bolts (Torx (T25)).

• Tighten the mounting bolts to 5 Nm after adjusting the panel height.
