Lower Mounting Tab, Repairing






Headlamps

Lower Mounting Tab, Repairing

- Switch ignition and all electrical consumers off and disengage the key or ignition switch in position 0 (ignition off).

• During removal and installation, leave ignition key with remote control inside the vehicle to prevent the doors from locking and possibly activating the Coming Home / Leaving Home functions on its own.

- Remove headlamp, refer to => [ Headlamps ]. Headlamps

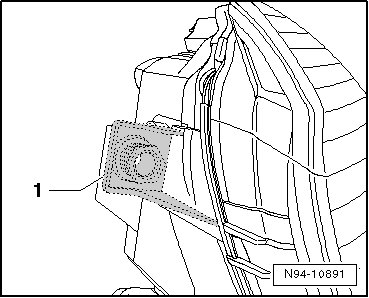

- Remove the remains of the headlamp mounting tab as depicted.

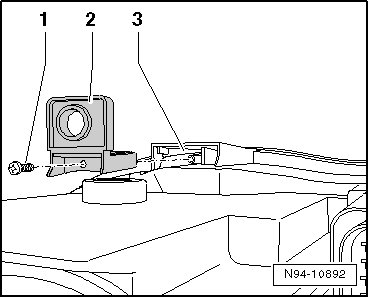

- Insert new mounting tab - 2 - in mount - 3 - on the headlamp and secure the mounting tab with mounting bolt - 1 -.

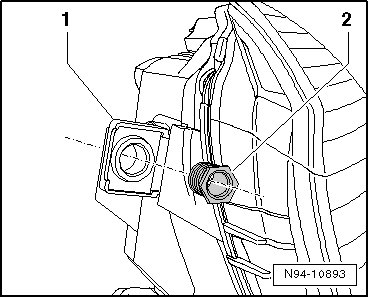

- Install the banjo fitting - 2 - in the mounting tab - 1 -.





- Install headlamp, refer to => [ Headlamps ]. Headlamps

• If one headlamp is removed, it must always be adjusted after installation.

- Check headlamp adjustment and adjust headlamp if necessary.
