Map Light Bulb: Service and Repair
Roof Trim Lamps and SwitchesRear Interior and Reading Light Bulbs Removing: -

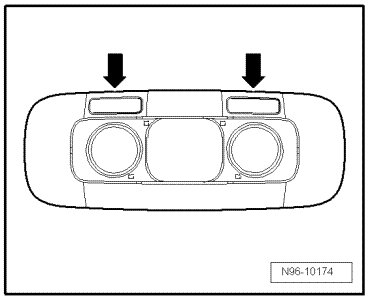

Disengage retainers -
arrows - and remove panel with diffusion lens from interior and reading lights.
-

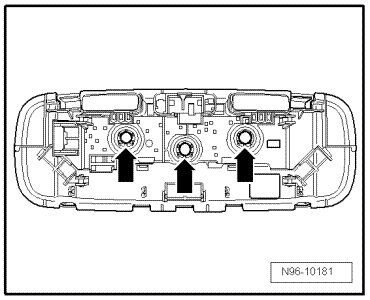

Carefully remove bulb from socket -
arrows -.
-
Replace the glass base bulb (12V, 5 W).
Installing: Install in reverse order of removal.
