Evaporative Emissions System: Service and Repair

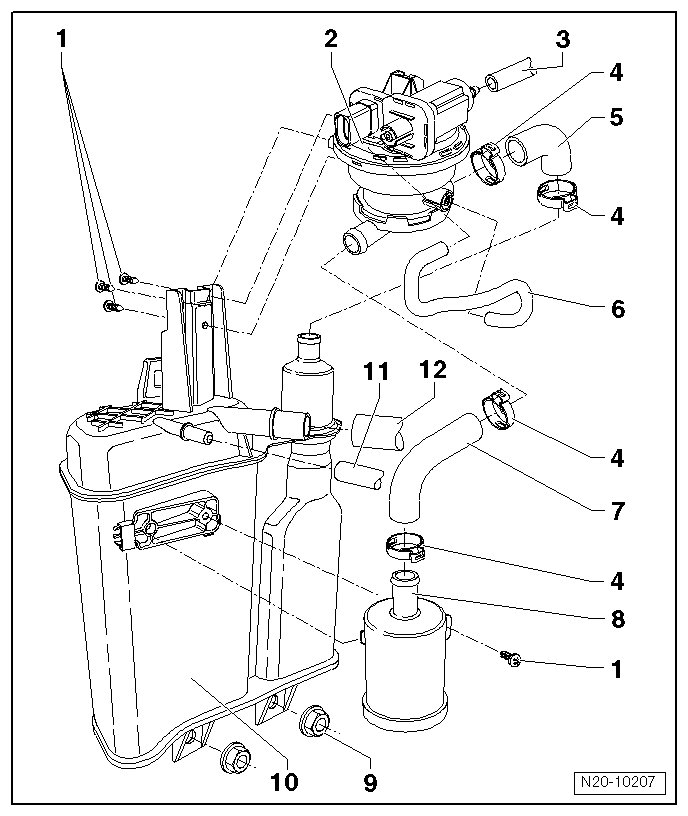

Evaporative Emission System Overview





1 Screws

2 Leak Detection Pump (LDP) (V144)

3 Vacuum Line

4 Clamp

5 Connecting Hose

• Evaporative Emission (EVAP) canister/LDP.

6 Vacuum Hose

7 Connecting Hose

• Air filter/LDP.

8 Air Filter Housing

9 Nut

• 10 Nm

10 Evaporative Emission (EVAP) Canister

• Installed location: inside the right rear wheel housing.

• Remove the bolts and pull the EVAP canister downward.

11 Vent Line

• To the EVAP canister purge regulator valve (N80).

• Clipped to the fuel tank.

12 Vent Line

• From the fuel tank.
