09M, 6 Speed FWD A/T

Tightening torques 09M, 6 Speed FWD A/T

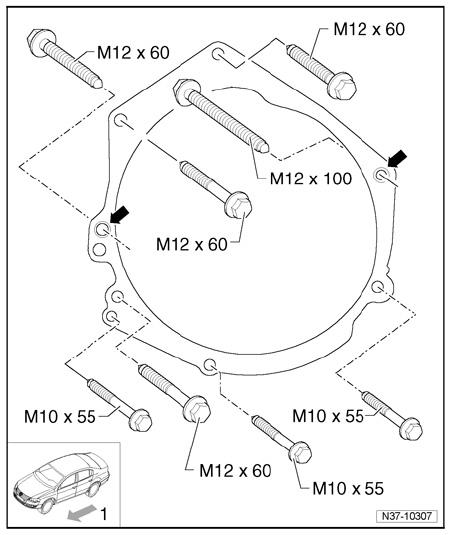

1 - Direction of travel
- Drive plate to torque converter
^ 60 Nm
^ Qty. 6, removing and installing using socket wrench insert V/175

- M12 - bolts M12
^ 80 Nm

- M10 - bolts M10
^ 40 Nm
^ These bolts are located at bottom in flange

- Two centering sleeves in engine - arrows -

Oil Pan
Bolt 7 Nm
Tighten bolts for oil pan in several stages in diagonal sequence
