Power Window Safety Switch: Service and Repair

Front Door Lamps and Switches

Driver Interior Locking Button (E308)

The following components are integrated in the Driver Interior Locking Button:

• Push Button Illumination (L76)

• Driver Interior Locking Indicator Lamp (K174)

Removing:

- Switch ignition and all electrical consumers off and disengage the key or ignition switch in position 0 (ignition off).

- Remove door trim.

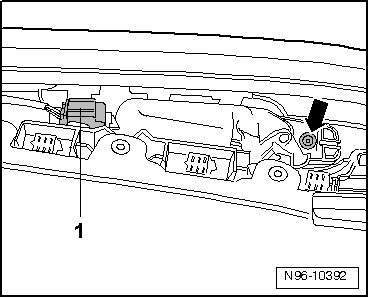

- Disconnect the connector - 1 - and remove the screw - arrow -.

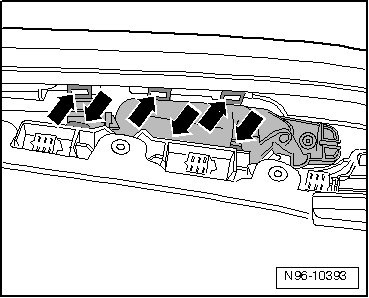

- Disengage retaining tabs - arrows - and remove door opener with Driver Interior Locking Button.





- Disengage retaining tabs - arrows - and remove Driver Interior Locking Button- 1 -.





Installing:

Install in reverse order of removal.
