Window Guide

Rear Door Window

Window Guide

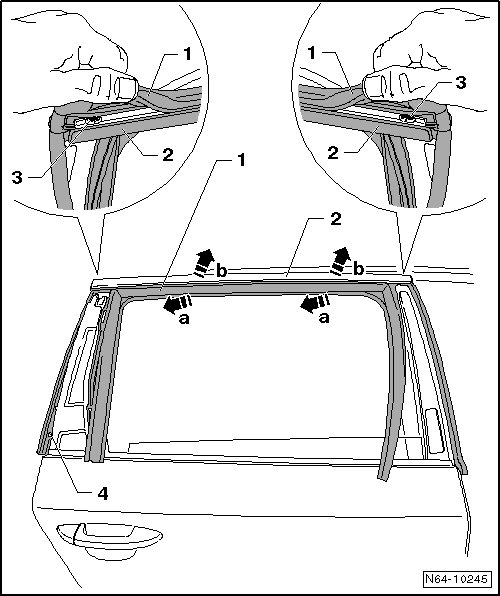

Removing

For window guides with trim molding

- Push window guide - 1 - in upper front and rear area slightly to side.





- Remove both clips - 3 -.

All window guides

- Fold seal of window guide - 1 - from inside from window frame.

- Loosen seal clips - 4 - from door.

- Pull window guide in upper area evenly from door flange - arrow a -.

- Pull window guide diagonally upward - b arrows - out of door.

Installation

To install, perform the steps used for removal in reverse order.

• A function test must be performed before door trim is installed.

• While installing window guide, make sure it is seated evenly (wind noise).
