Side Window Assembly Overview






Flush Bonded Windows

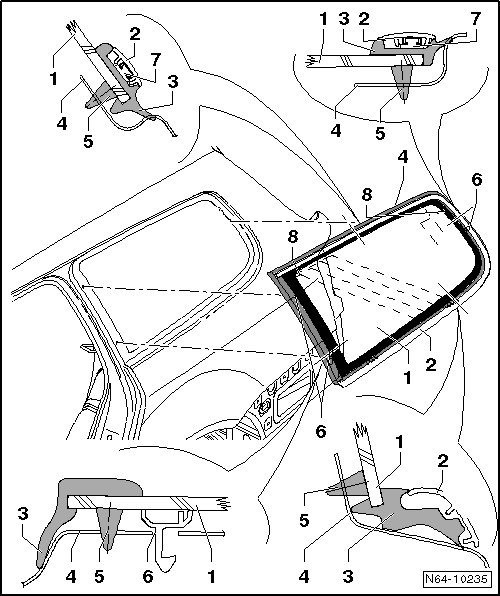

Side window Assembly overview





1 Side Window

• Remove side window, refer to => [ Undamaged Side Window ] Flush Bonded Windows

• Installing side window, refer to => [ Side Window ] Flush Bonded Windows

2 Decorative Trim Strip

• Component part of side window.

3 Seal

• Component part of side window.

4 Side Panel

5 PUR Adhesive Sealant

• Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time

6 Retaining Clip

• Component part of side window.

7 Clips

• Component part of side window.

8 Electrical Connections

• Connections for various Infotainment systems
