Control Module In Steering Wheel
Multifunction Steering WheelControl Module in Steering Wheel Removal and installation is identical for right and left button block.
Removing -
Remove steering wheel airbag.
-
Remove driver side airbag unit.
-

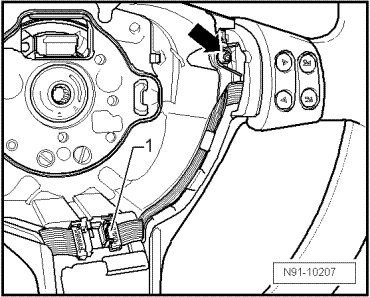

Disconnect connector -
1 -.
-
Remove screw -
arrow -.
-
Remove button block.
Installing Install in reverse order of removal.
