Cowl: Service and Repair

Air Duct Trim

Removing





- Remove the mounting bolt - 1 - and mounting nut - 2 - from the air duct trim - 3 -.

- Remove air guide trim - 3 - upward and out of vehicle.

Installing

• Only tighten the wiper arm mounting nuts to the specification after adjusting the wiper blade park position.

- Deactivate APP function. Refer to=> [ Wiper Motor Alternating Park Position Function, Deactivating ] Testing and Inspection if not already done by this time.

- With the ignition on, switch the windshield wipers on and off again to move the wiper motor into the park position.

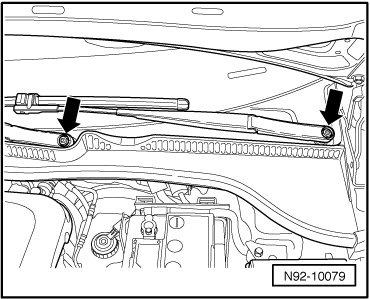

- Insert both wiper arms on the wiper arm shafts in the approximate end positions and screw on mounting nuts - arrows - hand-tight.





- Adjust the windshield wiper blade park position. Refer to=> [ Windshield Wiper Blades, Adjusting Park Position ] Windshield Wiper Blades, Adjusting Park Position.
