Power Door Lock Switch: Service and Repair

Door Lamps and Switches

Driver Interior Locking Button

• Push Button Illumination (L76), which cannot be replaced separately, is integrated in Driver's's Interior Locking Button (E308).

Removing

- Turn off the ignition and all electrical consumers.

- Remove door trim.

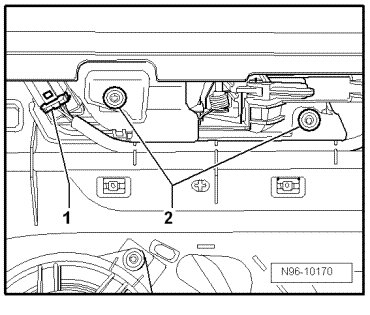

- Disconnect harness connector - 1 - and remove mounting bolts - 2 -.





- Remove door opener with switch from door trim.

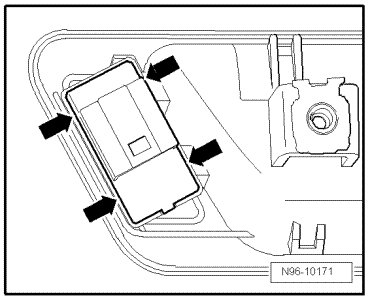

- Disengage retaining tabs - arrows - and remove interior locking switch from installation frame.





Installing

Install in reverse order of removal.
