Trim






Trim

• Removing and installing is described only for the left trim. Removing and installing right trim is similar

Removing

- Mirror Glass, Removing => [ Exterior Rear View Mirror ] Exterior Rear View Mirror

- Remove mirror housing => [ Exterior Mirror Housing ] Exterior Mirror Housing

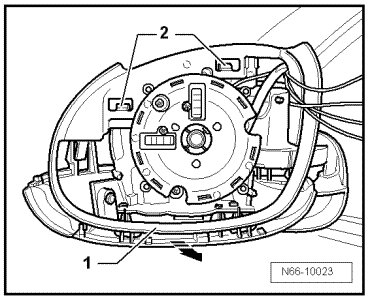

- Release retaining tabs - 2 - from mirror carrier using a screwdriver.

- Remove trim - 1 - in - direction of arrow -.

Installing

To install, perform the steps used for removal in reverse order.

• Then perform a function test.
