Removal and Replacement
Noise Insulation Assembly Overview Special tools, testers and auxiliary items required •
Torque wrench 2 to 10 Nm (V.A.G 1783)
•
Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.

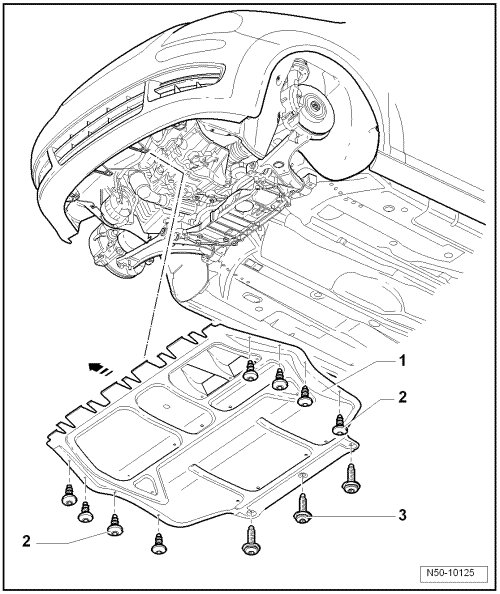

1 Noise Insulation •
-
Arrow - points in direction of travel.
•
Removing:
-
Remove bolts -
2 - and -
3 -.
2 Bolt •
Qty. 8
•
2 Nm
3 Bolt •
Qty. 3
•
6 Nm
