Noise Insulation Panel, Assembly Overview

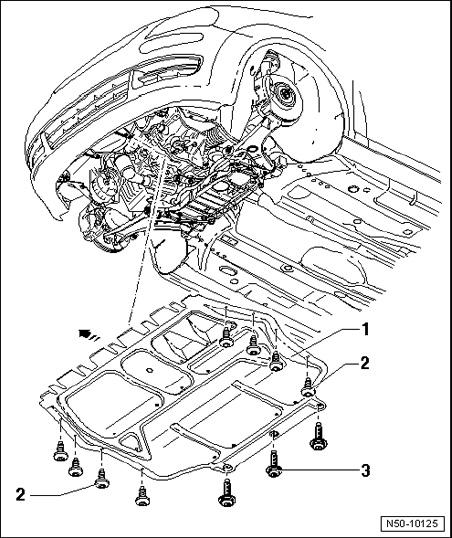

Noise Insulation Panel, Assembly Overview NOTE: Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.
1
-
Noise insulation -
-
- Arrow - points in direction of travel.
-
Removing:
-
Remove bolts - 2 - and - 3 -.
2
-
Screw
-
Qty. 8
-
2 Nm 3
-
Screw
-
Qty. 3
-
6 Nm
